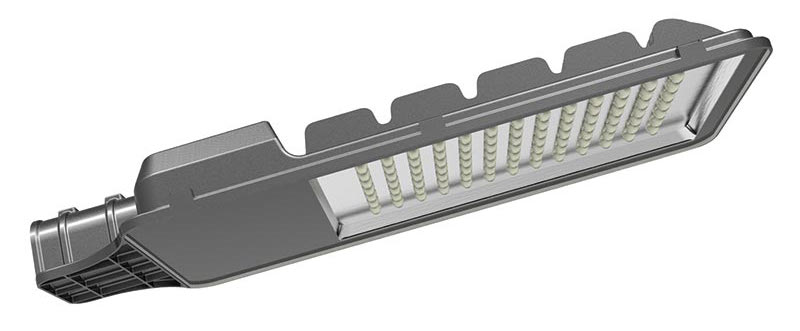

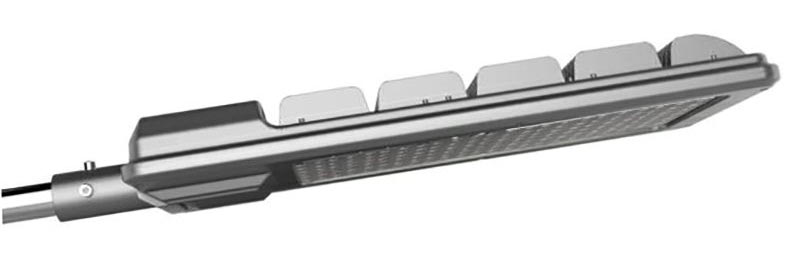

LED Street Light #SM-05-LED, more bright, more faster, working well in in bad weather !
Light tone : Warm white / White. This LED Street light has large number of light sources, and different light intensity, with the latest technology, the lights starts very fast, and has excellent color rendering index. Working well in harsh environments such as heavy rain, low temperature, and so on.
Street Lighting Specifications
| Model | SM-05-LED |
| Size | A:450*180*52mm(L*W*H) |
| B:550*210*55 mm(L*W*H) | |
| C:680*278*80 mm(L*W*H) | |
| D:780*278*80 mm(L*W*H) | |
| E:975*380*94 mm(L*W*H) | |
| Max Power | 30W/60W/120W/160W/260W |
| Input Voltage | AC85V-305V, 50hz, DC12/24V |
| Driver Brand | PHILIP /MEANWELL/ZHIHE and others |
| Chip Brand | PHILIPS/BRIDGELUX/CREE and others |
| Light Luminous Efficiency | ＞100LM/W |
| Uniformity | ＞0.8 |
| Average illumination | 6m＞25LUX, 8m＞20LUX |
| LED Luminous Efficiency | ＞90% |
| Color Temperature | 3000-6500K |
| CRI | Ra＞75 |
| Power Efficiency | ＞90% |
| Power Factor | ＞0.95 |
| Working Environment | - 60℃~ 70℃ |
| Material | die-casting aluminum |
| IP Rating | IP65 |
| Working Life | ＞50000H |
| Warranty | 3-5 Years |

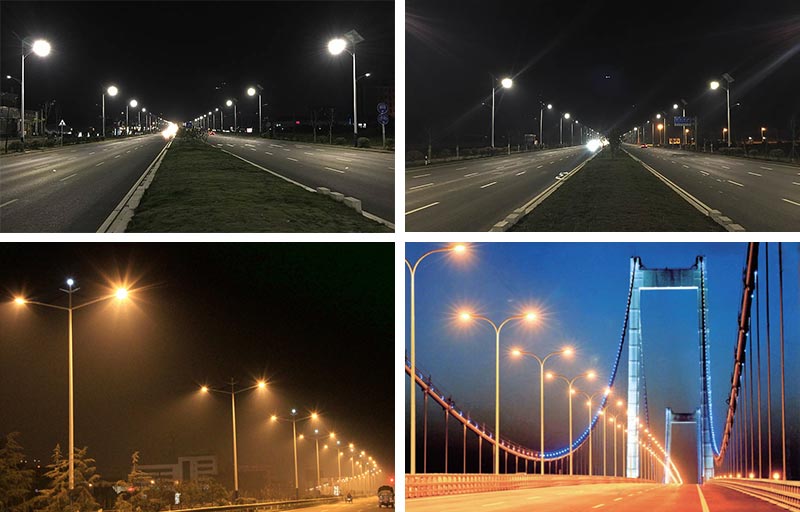

Applications
Benefits of LED Street lights
- The original high efficiency Lumileds LED chip, single light damage will not affect the whole light.
- The longitudinal uniformity 0.8, more comfortable and safety for driver.
- Water proof of IP65, avoid water vapor or corrosive gas erosion of chips and circuit boards.
- AC85-305V, suitable for many countries.
- Competitive for its outstanding working ability against harsh environments such as heavy rain, low temperature, and so on.

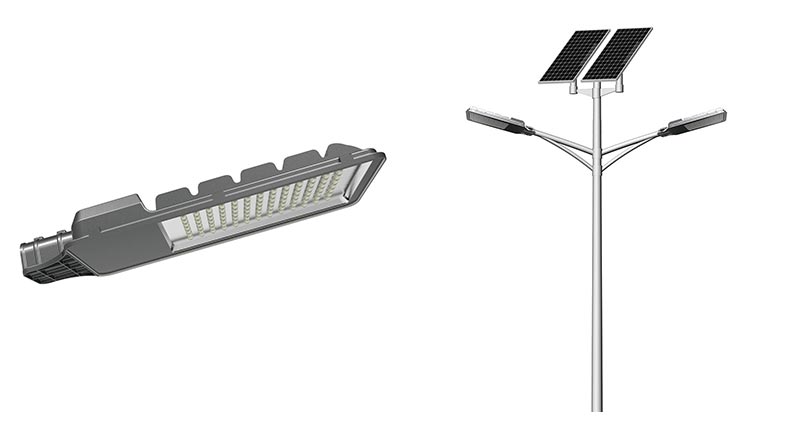

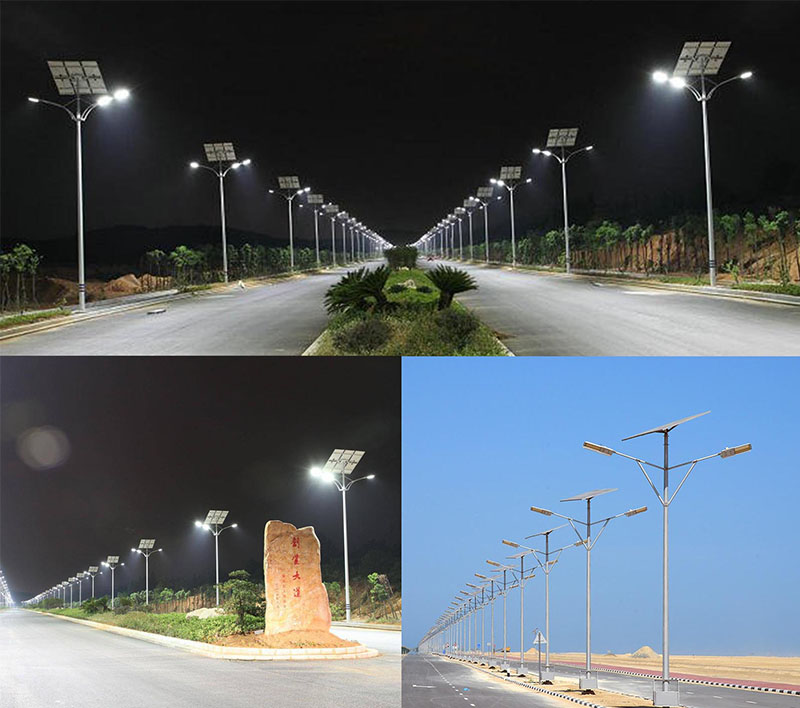

Double Arm Solar Street Lights

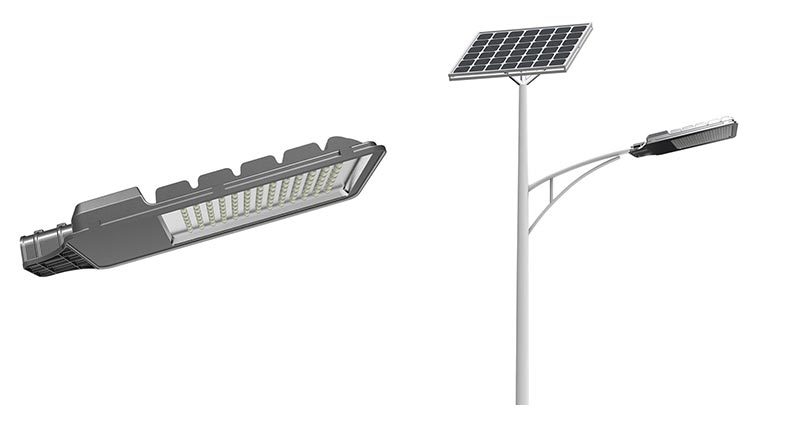

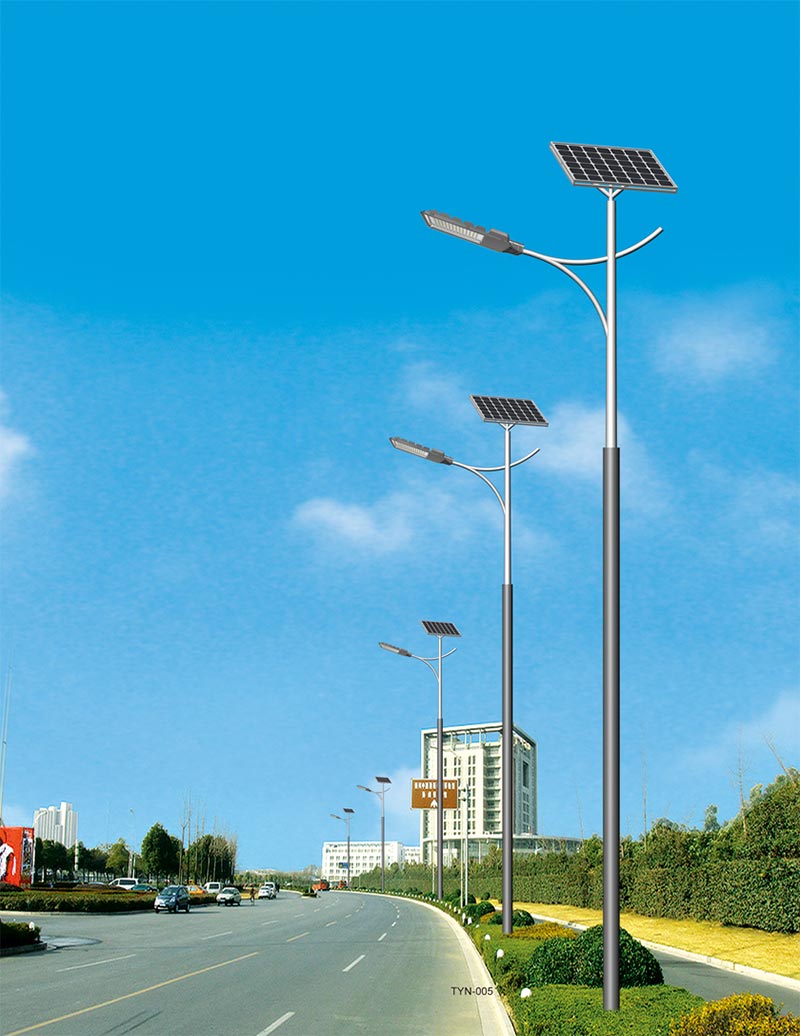

Single Arm Solar Street Lights

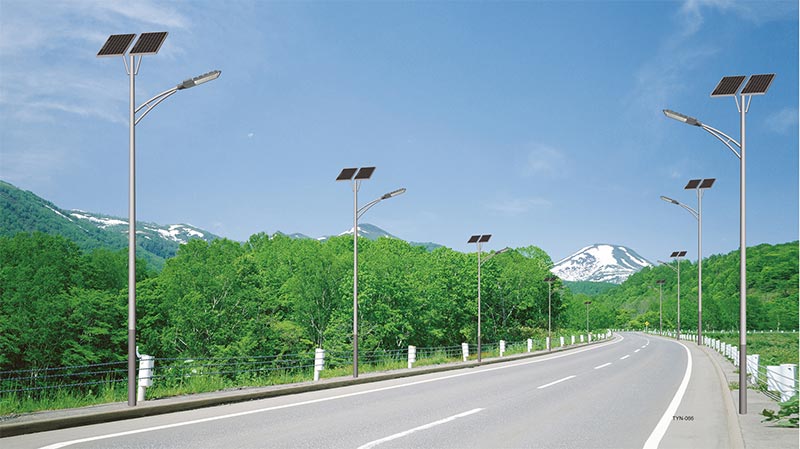

Benefits of Solar Street Lights
- It can be easily installed without the need of paving complicated lines. All you need is to have a cement base and it is ok to fix it with screws.
- Building solar-energy road lamps is a one-time investment, which does not need any costs for maintenance or servicing. The cost can be returned in around 3 years, and you can see the benefits in the long term.
- There is no potential safety risk. The current for the solar-energy lamps is the safe current of DC36v, which does not cause any safety problem.
- The main components for the solar-energy lamps are the solar cell panel with the life span of 25 years and the LED with the average life span of more than 50000 hours. The storage battery has a life span of 5-7 years.
- Green and environmentally friendly: it is its special features and advantages in favor of high-rank residential areas, and can keep reducing the realty management costs and reduce the costs of public areas for the residents.
